Our Products

We are committed to developing new products for use in the MOJ sector as well as re-engineering current products. Our current pipeline includes:

  • Our approved STRAD window is readily available to order.

    More info below

  • These products will be used in newly built prisons, and we are currently experimenting with glass and polycarbonate sandwich solutions which we will put through our test house procedures. They will be combined with our high-quality aluminium double-glazed windows and secure steel grilles.

  • We are currently in the design cycle with our range of products, we plan to launch these in Q4 2024. The range will cover both safe cell and non safe cell options.

  • We are currently in the design cycle with our range of products, we plan to launch these in Q1/2 2025.

  • Including cell bells and shower panels

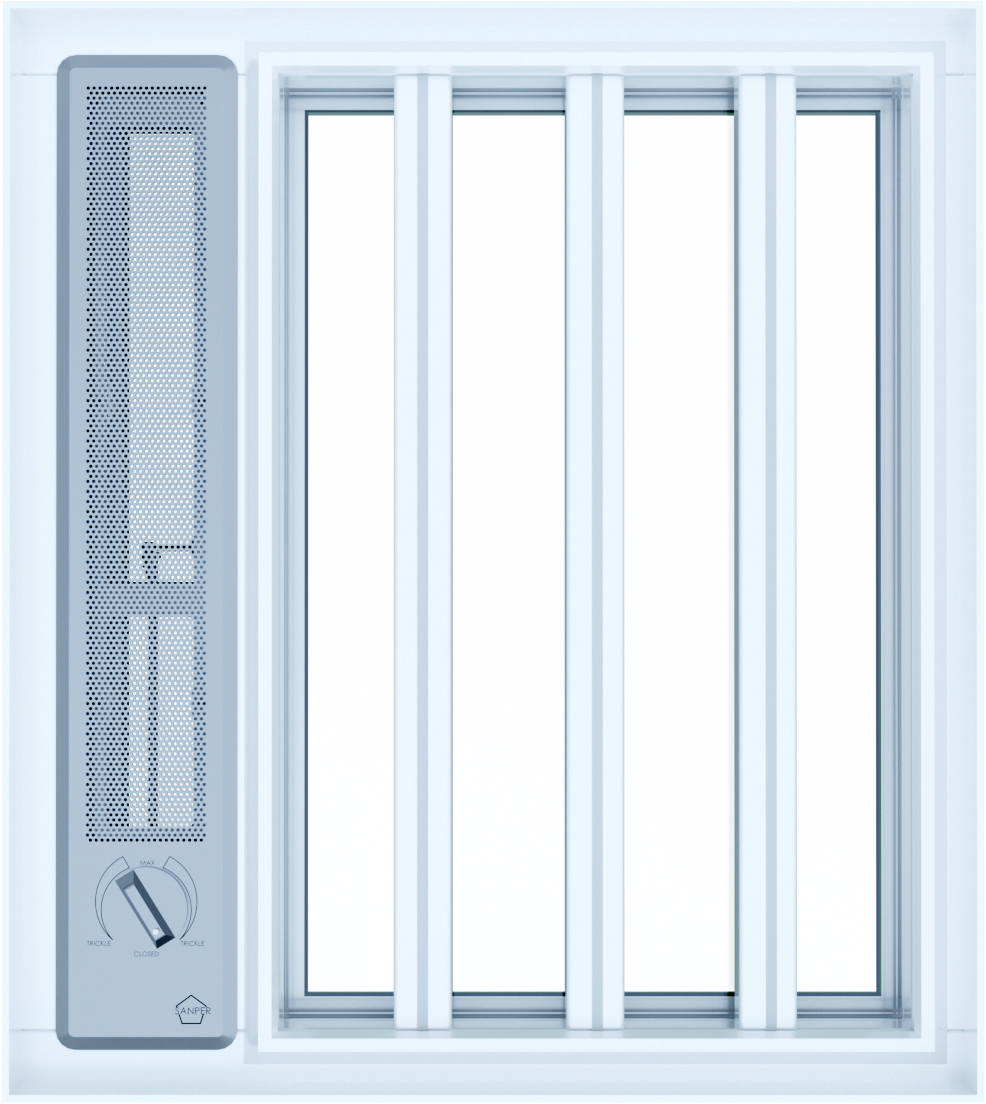

Safe Cell Window

Strad can offer a range of window solutions for safe cell and non-safe cell installation. From complete high-security replacement windows designed to meet MOJ standards, to retrofit on-site parts replacement, such as vent plates and polycarbonate screens.

  • The prison window comprises of a two-part construction.

    An internal facing reinforced steel frame with fixed 8mm polycarbonate screen and vent plate with anti-ligature airflow control, plus an exterior facing double glazed aluminium window, with one or two openings. These are installed as one complete unit, with a linkage between the vent plate and window opening for cell ventilation.

    The 2005 model is available in 5, 6 and 7-bay configurations. Other bespoke design options are available to suit the prison.

    Most new installations and retrofit windows feature a twin vent plate design to meet MOJ air ventilation requirements for a shared cell.

  • Compliance with NOMS 2005 Safer cell window design

    Independently tested to NOMS STD/X/SPEC/024

    23 hour-cut resistance bars

    Window assembly meets building regulations part L with low E double-glazed units

    The grille is constructed from 50mm x 50mm x 6.3mm square hollow section grade 50 D high tensile steel, enhanced with tungsten carbide rods on all corners, with all joints hard-faced welded

    Grille fixed into the wall with 12mm high tensile resin anchors rod bars

    Polycarbonate 8mm screen mounted to the internal face

    External window frame is thermally broken and is constructed from aluminium which can be opened to allow the free flow of air

    2mm thick 304 stainless steel ventilation plate/s with 3mm holes are fitted to the inside allowing for 36% air flow

    Anti-ligature window control mechanism is housed within the ventilation panel allowing easy operation of the opening sashes

    Powder coated to RAL 9016 (other RAL colour options available)

  • There are many designs of windows in use in the MOJ estate. We can design, manufacture and fit a solution for most situations. See examples below.

    Get in touch with the team today to arrange a site survey and we will aim to provide you with a fit-for-purpose solution, designed to meet the relevant MOJ standards.

5-Bay Window

7-Bay Window

Trickle Vent Clamp

If required, We can supply and fit non-safe cell windows, using the same double-glazed aluminium format as our high-security windows.

Our survey team will attend your site and provide an estimate and time frame for your project.

Get in touch with the team today to arrange a site survey and we will aim to provide you with a fit-for-purpose solution, designed to meet the relevant MOJ standards.
